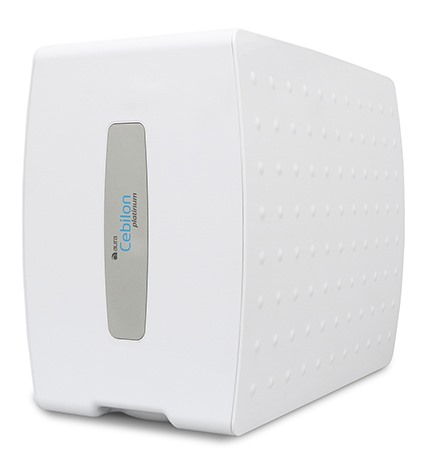

Aura Cebilon Platinum
Usage
Aura Cebilon PLATINUM is used to obtain drinking water from mains water that passes through municipal treatment process. This water must be microbiologically safe, subjected to the necessary disinfection. If the parameters of the water are within the following ranges efficient operation of the appliance is ensured. Systems designed differently for waters such as sea water, well water, muddy water etc. with a very high TDS value are also available.
| Temperature | 5ºC - 38ºC / (38 ºF - 100 ºF) |
| Operating Pressure | 40 psi - 145psi / (2,8 bar - 10 bar) / (275kPa - 1.000 kPa) |
| pH Range | 6,5 - 9,5 |
| Maximum Fe | 0,2 (ppm=mg/L) |
| Maksimum TDS | 1.250 (ppm=mg/L) |
| Turbidity | 5 NTU |
| Hardness | 17 ºFr-10 ºdH - 170 mg/L CaCO3 |
| Technical Specifications | |||
|---|---|---|---|
| 12 inch inline 5 mikron sediment filtre | Water shut-off device | ||
| 12 inch inline GAC filtre | Air gap faucet (optional) | ||
| 12 inch inline 1 mikron sediment filtre | Tank capacity : 8 L | ||
| 75 GPD RO membran | Daily capacity : 280 L/gün | ||
| 10 Inch inline mineralized post carbon filter | Purification rate : %85- %98 | ||
| 110 psi 1,2 lt/m Pump | Gross weight : 11,8 Kg | ||
| 24 Volt DC adapter | Device dimensions : 450x250x375mm | ||
| Low pressure switch | Tank dimensions : Çap 244mm, Boy 366mm | ||
| High pressure switch | Box dimensions: 550x270x405mm | ||
